The Need: Green Clean Space

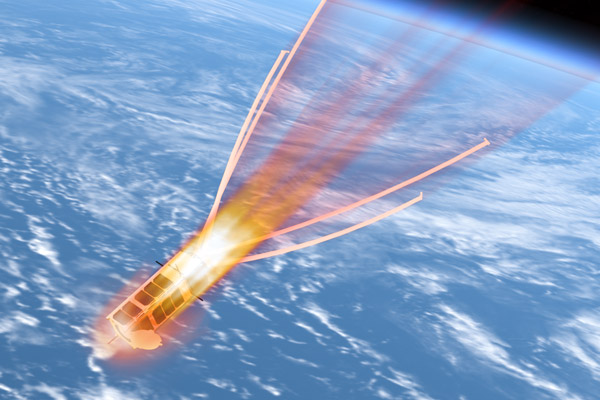

Minutes and hours it takes to lift satellites up into space, but years and decades go by before their dead remainings descend and cease to be in a final shower of sparks:

Space debris – especially due to next-gen constellations in LEO and MEO – is threatening to get out of control; without effective mitigation measures to be applied to each and every coming mission it will increase to a level where spaceflight as a whole is endangered and will be impossible in the end.

After more than 50 years of institutional and governmental space missions we are now finally at the verge of adding space to mankind´s natural sphere of economy. There is no choice but to just do it

• in a way that allows only for uncompromisingly sustainable access to our last frontier,
• in a way that is technologically clever, economically affordable, and as safe as houses.

The solution is ready, available and fits any mission profile.

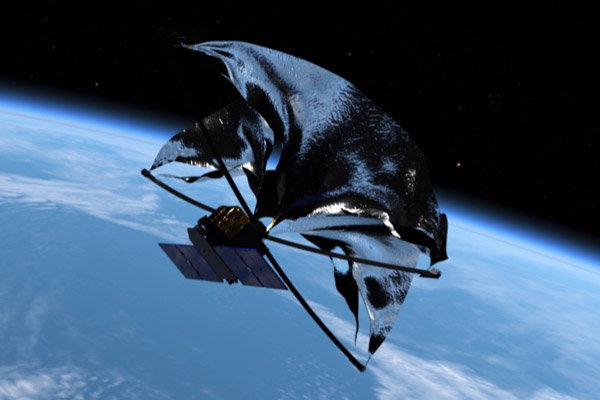

The Solution: ADEO by HPS made in Germany

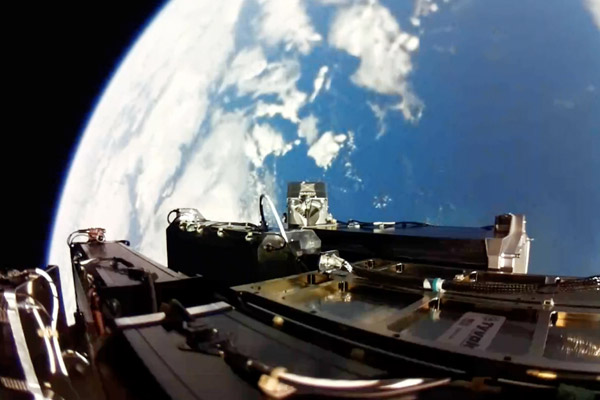

Deployed ADEO in space, taken from ION-spacecraft´s in-orbit-camera in 12/2022

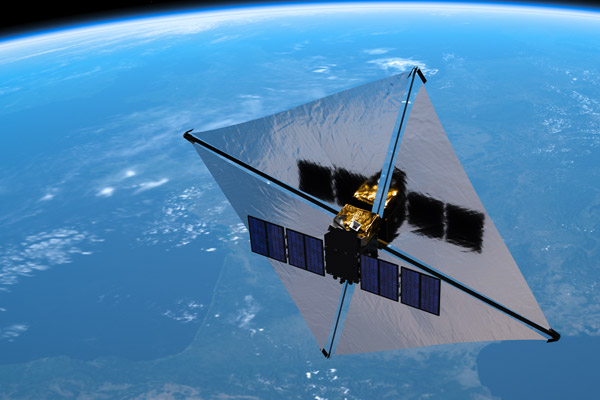

ADEO: Detailed Description Technology

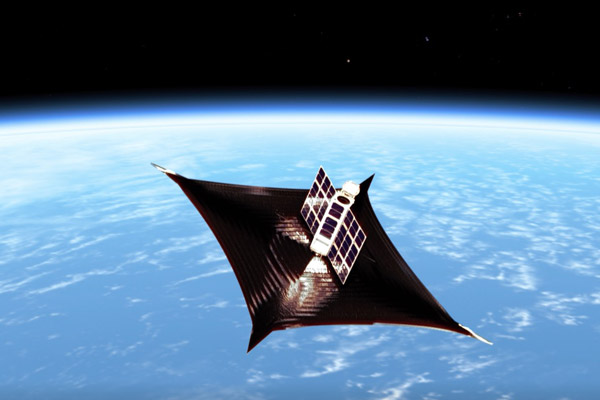

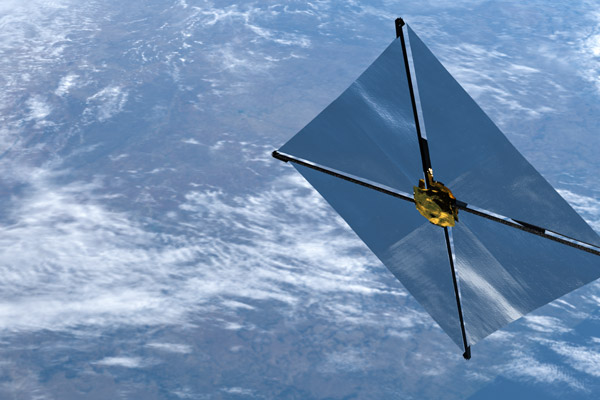

The ADEO subsystem is a scalable drag augmentation device that uses the residual Earth atmosphere present in Low Earth Orbit (LEO) to passively de-orbit satellites of sizes between 1 to 2000 kg. For the de-orbit manoeuvre, a large surface is deployed which multiplies the drag effect of the satellite´s surface significantly: The drag force is increased causing accelerated decay in orbit altitude. Advantageous about a drag augmentation device is that it does not require any active steering and can be designed for passive attitude stabilization, thereby making it also applicable for non-operational, and tumbling spacecrafts. The passive ADEO subsystem requires neither extra propulsion nor engine, which adds the advantage of making it lighter than any active subsystem.

One major advantage is: completely passive deorbiting without GNC within 5 years to be compliant with new deorbit regulations.

ADEO Versions

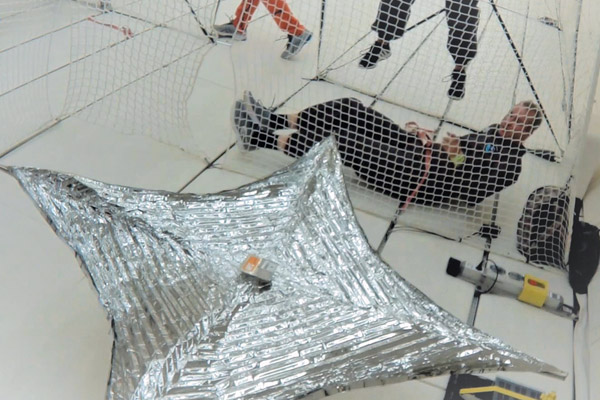

ADEO-PICO

Technical Features:

• Application Satellites: 1 – 20 kg (1U-16U)
• Sail Sizes: 1 m²
• Total Mass: 0.35 kg
• Characteristics: 98x98x35 mm³
• Spring-based
• Pyro Cutter as activation system
• Activation signal: by satellite
• Deployable boom material: Bi-stable steel tape spring
• Sail material: Thin Kapton-based foil (aluminium coated)
• Mechanical interface: 4 screws
• Electrical interface: 2 wires (free ends)
• Most of component similar and used from ADEO-N

Mission Examples:

• ADEO-N1 (launched Nov. 2018):
  First mission called “Pride of Bavaria”, launched from New Zealand on Rocket Lab’s Electron
• ADEO-N2 (launched June 2021):

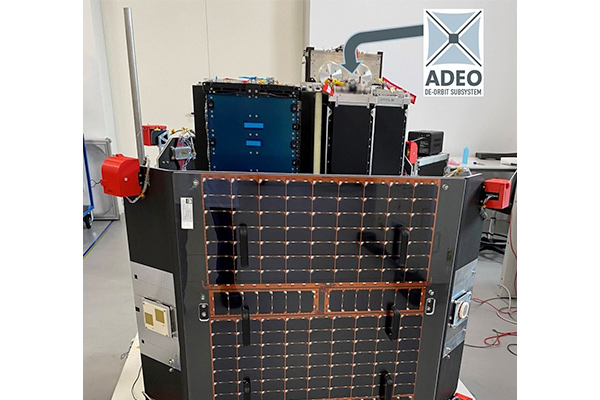

  Mission „Show me your Wings” onboard D-Orbit’s (Italy) ION Satellite Carrier, successfully deployed after 16 months in Orbit in Dec. 2022
• ADEO-N3 (launched in Jan. 2023) on D-Orbit’s (Italy) ION Satellite Carrier
• Next launches:
  • ADEO-N on Ororatech within ESA´s GENA-SAT activity
  • ADEO-Cube on EnduroSat Mission.

ADEO-CUBE

Technical Features:

• Application Satellites: 5 – 50 kg
• Sail Sizes: 3.4 m²
• Total Mass: 0.75 kg
• Characteristics: 90x90x72 mm³
• Spring-based
• Pyro Cutter as activation system
• Activation signal: by satellite
• Deployable boom material: Bi-stable steel tape spring
• Sail material: Thin Kapton-based foil (aluminium coated)
• Mechanical interface: Cubesat-Standard
• Electrical interface: 4 wires (free ends)
• Most of component similar and used from ADEO-N

Mission Examples:

• ADEO-N1 (launched Nov. 2018):
  First mission called “Pride of Bavaria”, launched from New Zealand on Rocket Lab’s Electron
• ADEO-N2 (launched June 2021):
  Mission „Show me your Wings” onboard D-Orbit’s (Italy) ION Satellite Carrier, successfully deployed after 16 months in Orbit in Dec. 2022
• ADEO-N3 (launched in Jan. 2023) on D-Orbit’s (Italy) ION Satellite Carrier
• Next launches:
  • ADEO-Cube on EnduroSat Mission.

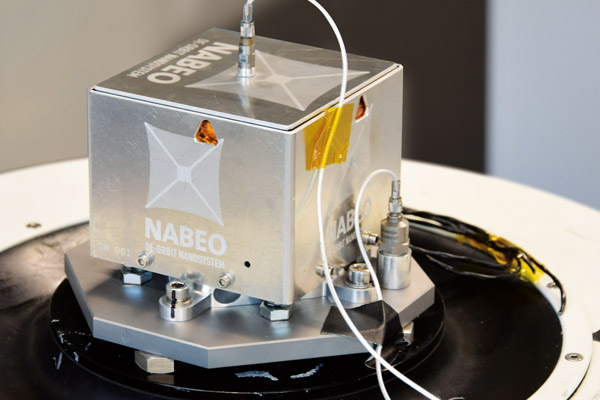

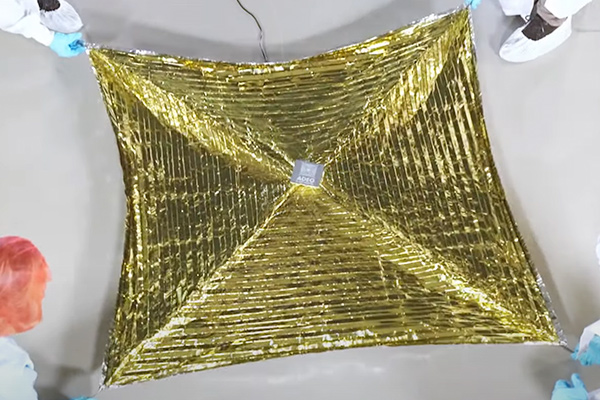

ADEO-N

Technical Features:

• Application Satellites: 1 – 250 kg
• Sail Sizes: nominal 5 m² +/- 2m²
• Total Mass: 0.8 kg
• Characteristics: 10x10x10 cm³
• Spring-based, constant deployment
• Pyro Cutter as activation system
• Activation signal: by satellite, as baseline (via ADEO’s watch dog as option)
• Deployable boom material: Bi-stable steel tape spring (-N) and Titanium (-M) mono-stable tape
• Sail material:
  • either thin Kapton-based foil (aluminium coated)
  • or, for IRIS2 soon available: non-reflective material (complying with the requirement “not disturbing astronomers”, even lowering reflection of satellite.
• Mechanical interface: 4 screws ADEO-N
• Electrical interface: 2 wires ADEO-N
• Customizable sail areas depending on spacecraft mass and deorbit time needs.

Mission Examples:

• ADEO-N1 (launched Nov. 2018):
  First mission called “Pride of Bavaria”, launched from New Zealand on Rocket Lab’s Electron

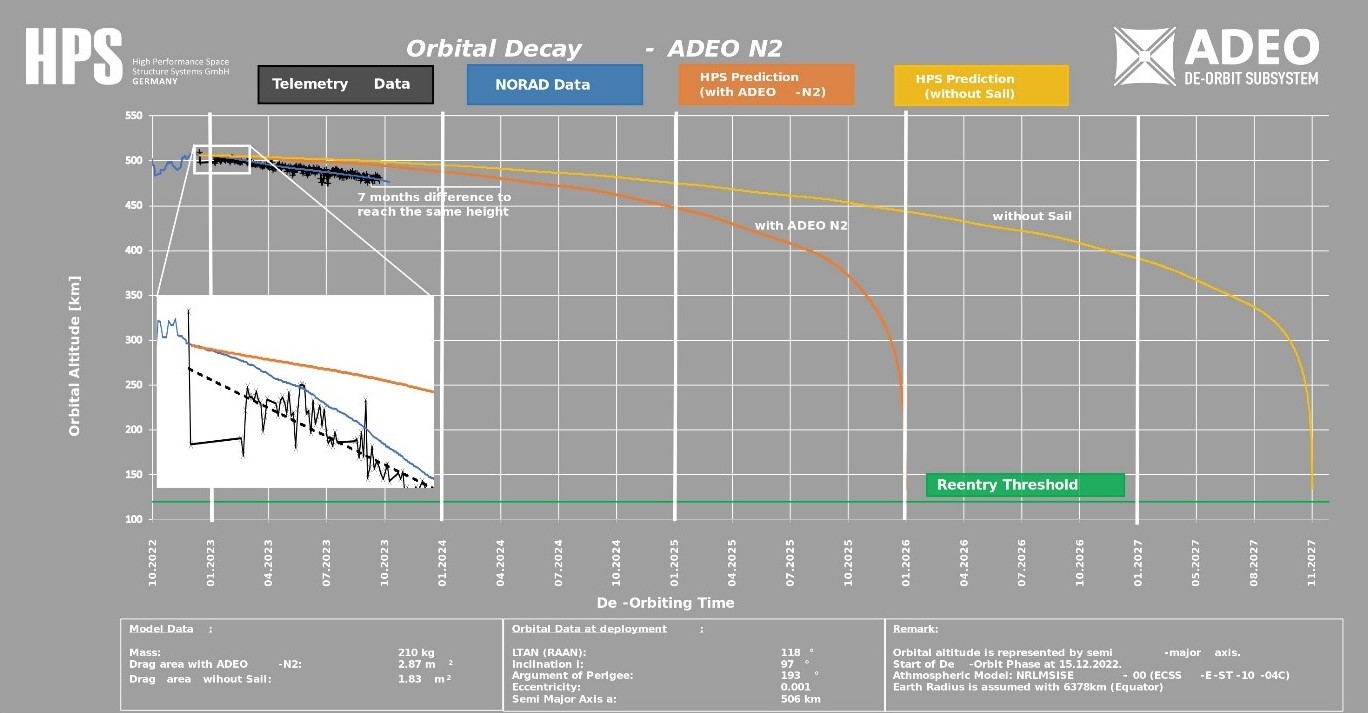

• ADEO-N2 (launched June 2021):

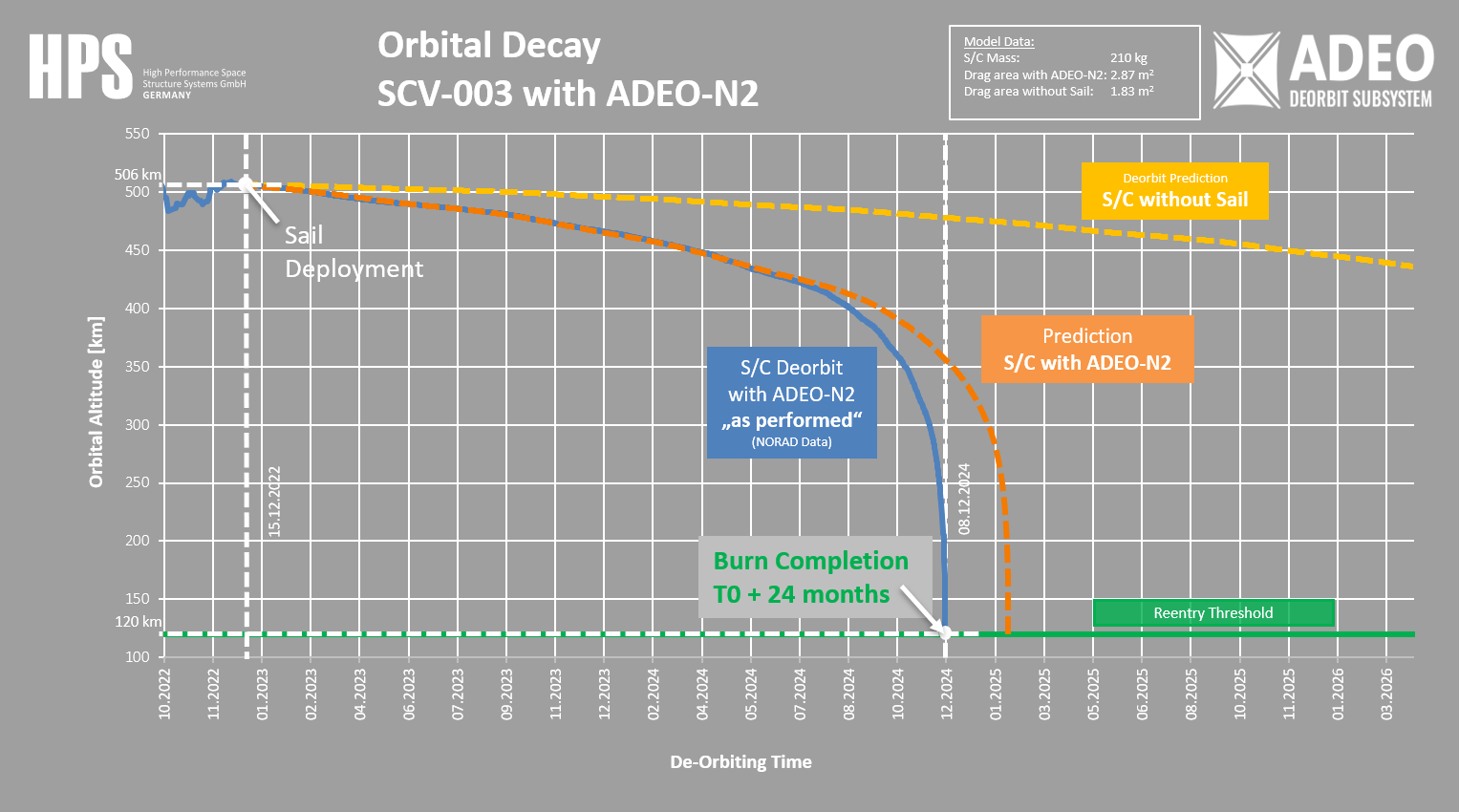

  Mission „Show me your Wings” onboard D-Orbit’s (Italy) ION Satellite Carrier, successfully deployed after 16 months in Orbit in Dec. 2022
• ADEO-N3 (launched in Jan. 2023) on D-Orbit’s (Italy) ION Satellite Carrier
• Next launches:
  • ADEO-N on Ororatech within ESA´s GENA-SAT activity
  • ADEO-NCube on EnduroSat Mission.

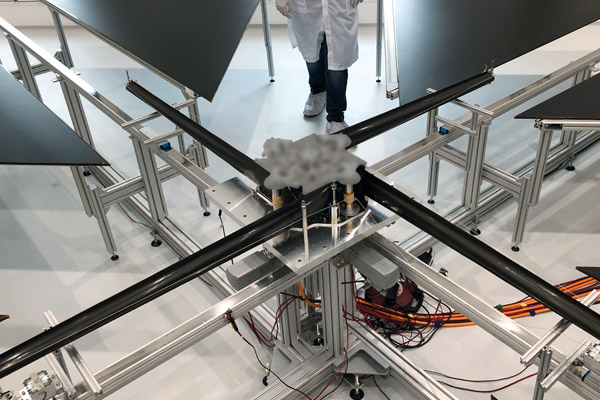

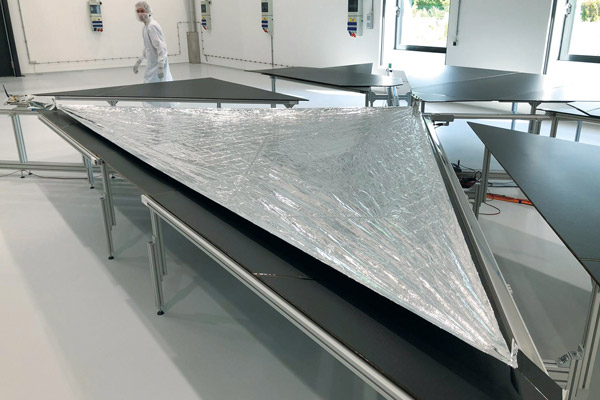

ADEO-M

Technical Features:

• Application Satellites: 100 – 700 kg
• Sail Sizes: nominal 15m² +/- 5m²
• Total Mass: 3.5 kg
• Characteristics: diameter 20 cm; height 25 cm
• Spring-based, constant deployment
• Pyro Cutter as activation system
• Autonomous functionality optional on request (deployment, when satellite out of operation)
• Spring-based, constant deployment
• Pyro Cutter as activation system
• Activation signal: by satellite, as baseline (via ADEO’s watch dog as option)
• Deployable boom material: thin steel (-N) and tanium (-M) bistable blades
• Sail material:
  • either thin Kapton-based foil (aluminium coated)
  • or, for IRIS2 soon available: non-reflective material (complying with the requirement “not disturbing astronomers”, even lowering reflection of satellite.
• Mechanical interface: 8 screws ADEO-M
• Electrical interface: 4 wires ADEO-M
• Completely passive deorbiting without GNC within 5 years to be compliant with new deorbit regulations
• Customizable sail areas depending on spacecraft mass and deorbit time needs.

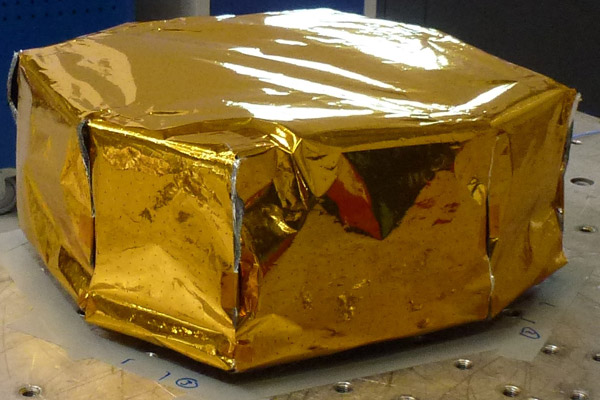

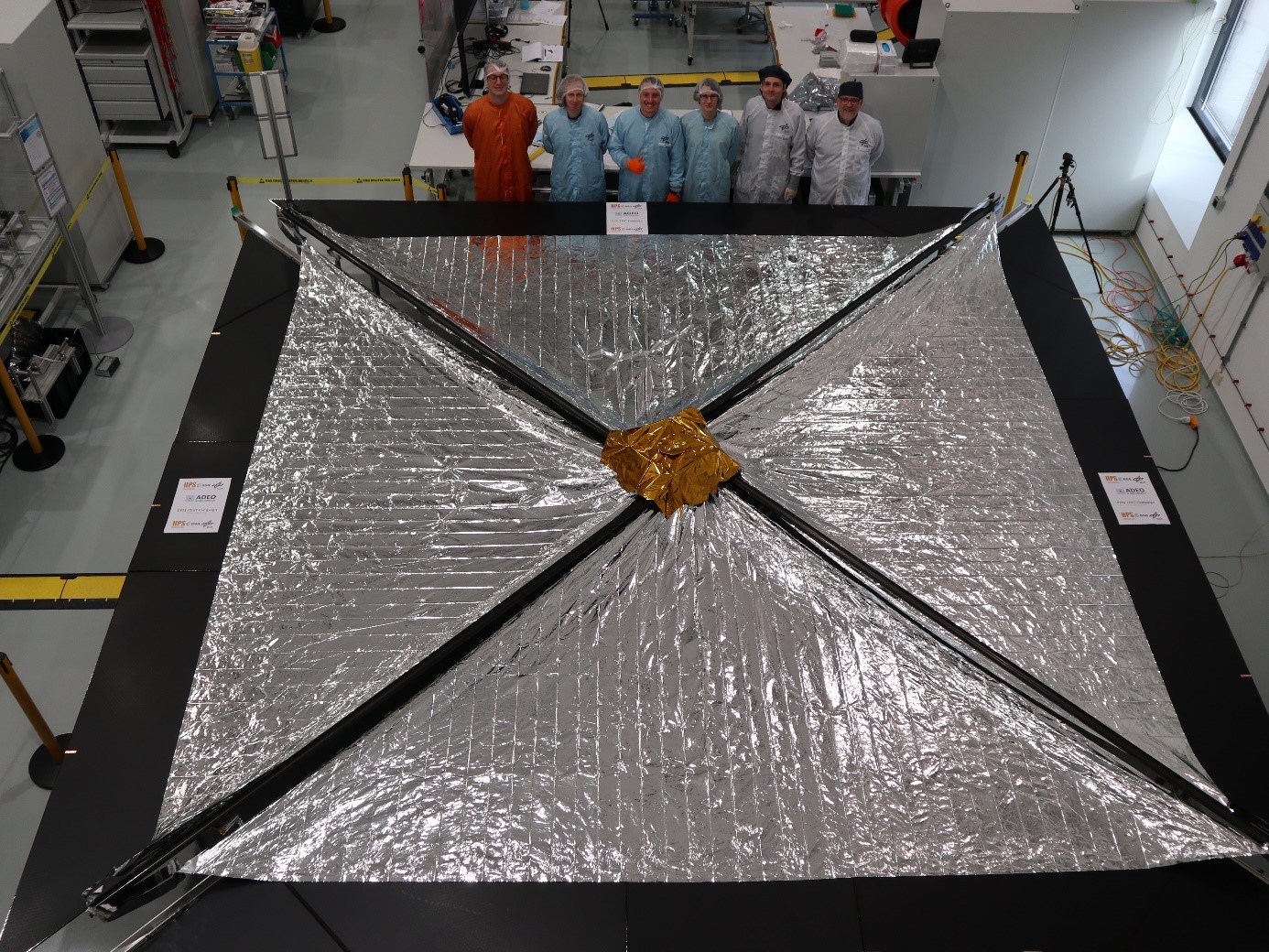

ADEO-L

Technical Features:

• Motorized deployment
• Own deployment control electronics
• Optional: own battery for autonomous deployment in case of satellite failure
• No onboard GNC required
• Dragsail area from 15 m² to > 100 m²
• Stowed size: 40 cm x 40 cm x 17 cm
• Mass: 9-15 kg (depending on sail area).

General Description:

• Scalable drag-augmentation subsystem to deorbit satellites and rocket bodies between 500 kg and 1,500 kg (ADEO-L)
• Completely passive deorbiting without GNC within 5 years to be compliant with new deorbit regulations – Customizable sail areas depending on spacecraft mass and deorbit time needs.

Mission Examples:

• ADEO-L1 (2014 – 2017, in contract to ESA):
  Development of Engineering Model; extensive test program (deployment in hot and cold TVAC conditions, vibration, rapid decompression, numerous material level testing).
• ADEO-L2 (2018 – 2023):
  Development and production of a PFM with launch in 2025 onboard an ESA/EC IOV-spacecraft built by Redwire Space (BE)

Production

HPS-customers have the choice:

A) Standard, mainly selected: “Made in Germany”, delivery “off the shelf”. Advantages: routine, experienced staff, serial quality production, fast delivery.

B) Home-based in case of large constellations: made in customer´s country, serial production, however depending on size of badge and operational timeline. Advantages: low distance, reduced supply chain, creates jobs, qualifies new employees, may lower price of production (depending on specific country´s wage level)

Pricing

The three HPS price promises:

1. Every ADEO subsystem will cost less than any active system running on propulsion
2. Every ADEO subsystem has a standard price per single unit
3. Every ADEO order of more than one unit receives an individual discount, just check with our online configurator

ADEO Reviews

Example:

News from HPS about ADEO:
ADEO1 Archive – HPS GmbH

Gathared Public Articles:
HPS in the Media – HPS GmbH – The Team to Trust HPS GmbH – The Team to Trust (hps-gmbh.com)

• Selected Examples:
  • ESA – Show Me Your Wings: Successful In-flight Demonstration of the ADEO Braking Sail
  • 3– 2– 1– Nächster Liftoff für HPS-Weltraumsegel – Raumfahrer.net
  • Smallest version of HPS’s ADEO braking sail deploys successfully – SpaceWatch.Global
  • Weniger Schrott im Weltraum dank Bremssegel (dlr.de)

Documentary of ZDF (independent german television broadcaster):
http://Weltraumschrott – Gefahr aus dem All – ZDFmediathek

ADEO Online Configurator

Your spacecraft, your mission, your timeline

Please enter your mission data below.

Our promise: You will receive your quote incl. individual rebates within 72 hours!
